Honest and reliable enterprise

Oilless Bearing

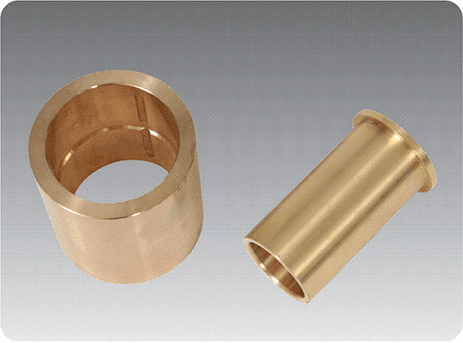

OILLESS #600 (Oil containing copper alloy based)


This is an oil cotaining no lubircation bearing in which oil is impregnated by artificially constructing the fine pores at the inside of the structure of copper alloy by special casting method.

The wear resistance property and self lubrication property are excellent.
As the velocity property is excellent, this can be used even for the high velocity movement of light load.
The corrosion resistance is superb.
This is appropriate for the minimization of the number of lubrication (To be less than 1/6 of the number of lubrication of the gun metal based product)
The machining of high accuracy level can be accomplished.
All the products whose shape and size can be achieved with casting and machining can be manufactured.
Compared to the oil containing powder sintered bearing, the allowable load capacity and impact resistance are excellent and an advantage is maintained for the manufacturing of small quantity items with multiple types and large size items.
Various machine tools, textile machinery, food machine, printing machine, woodworking machinery, paper making machine, precision die contacting section, rubber product molding machine, and the section where the replacement with no lubrication bearing is required among the locations of the high velocity mixer where the existing lubrication type metal bearings are used.
